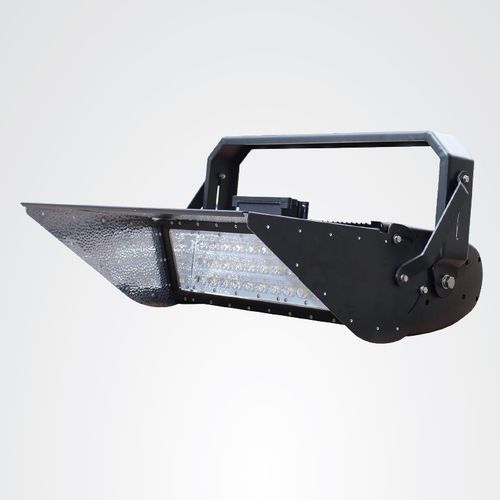

IP65 floodlight JNHM2-1250S-5700-A1-ND
LEDfor stadiumfor airport

IP65 floodlight - JNHM2-1250S-5700-A1-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A1-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A1-ND - JNLED - LED / for stadium / for airport - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, for airport, industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Beam type
spot
Dimmable
not dimmable
Other characteristics
high-efficiency, IK08, high-intensity
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,250 W
(1.7 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,700 K

Min.: 5,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 71 unit

Description

Overview
High-power 1250 W cool white LED high-mast floodlight designed for large-area illumination and high-mast installations. Non-dimmable, IP65 and IK08 rated, supplied as a retrofit solution for conventional HID/HPS/metal halide fixtures.

Key features
  • Original Philips Lumileds LEDs with Meanwell HLG-1000H drivers
  • High luminous output: 143,500 lm and 120 lm/W efficacy
  • Robust outdoor design: IP65, IK08, tempered glass lens, marine-grey housing
  • Wide operating range: -20°C to 45°C, 10%-95% RH
  • Surge protection 10kV, Power Factor >0.95


Applications
  • High-mast stadium and arena lighting
  • Airport aprons, ports and large outdoor yards
  • Industrial yards, logistics hubs and large-area outdoor sites


Installation & compatibility
  • SKU / Model: JNHM2-1250S-5700-A1-ND
  • Input voltage: 120-277V AC (standard); 347-488V AC optional
  • Input cable: H07RN-F 3G2.5; mounting compatible with standard high-mast brackets
  • Non-dimmable product — intended as direct retrofit replacement for HID/HPS/metal halide


Technical specifications
  • Power consumption: 1250 W
  • System power (W): 1295 W
  • Beam angle: 30° (symmetric)
  • Beam angle range: 15°x15° (Fixed)
  • IP rating: IP65
  • IK rating: IK08
  • Color rendering index (CRI): >70
  • Colour temperature: 5700 K (cool white)
  • LED type: Philips Lumileds
  • Number of LED modules: 8 modules
  • LED driver brand/model: Meanwell HLG-1000H
  • Dimming capability: Non-dimmable
  • Power factor: >0.95
  • Surge protection: 10kV
  • Lens material: Tempered glass
  • Housing colour: Marine-Grey
  • Fixture dimensions (H x L x W): 550 mm x 480 mm x 320 mm
  • Total luminous flux: 143,500 lm
  • Efficacy: 120 lm/W
  • Lifespan: 80,000 hours
  • Working temperature range: -20°C ~ 45°C
  • Working humidity range: 10% - 95% RH
  • Warranty period: 5 years
