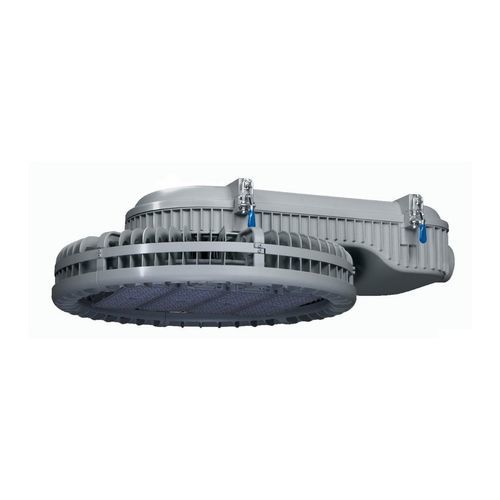

IP65 floodlight JNHM1-450S-3000-A2-ND
LEDfor sports fieldsfor stadium

IP65 floodlight - JNHM1-450S-3000-A2-ND - JNLED - LED / for sports fields / for stadium
IP65 floodlight - JNHM1-450S-3000-A2-ND - JNLED - LED / for sports fields / for stadium
IP65 floodlight - JNHM1-450S-3000-A2-ND - JNLED - LED / for sports fields / for stadium - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for sports fields, for stadium, for parking lot, urban
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
not dimmable
Other characteristics
high-efficiency, IK08
Height

Min.: 854 mm
(34 in)

Max.: 854 mm
(34 in)

Length

Min.: 610 mm
(24 in)

Max.: 610 mm
(24 in)

Width

Min.: 238 mm
(9 in)

Max.: 238 mm
(9 in)

Power

Min.: 450 W
(0.61 hp)

Max.: 450 W
(0.61 hp)

Luminous flux

Min.: 63,500 lm

Max.: 63,500 lm

Color temperature

Min.: 3,000 K

Max.: 3,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Description
450 Watt LED flood light with original Philips Lumileds and Meanwell driver. Non-dimmable, IP65 protection. Designed as a direct retrofit/replacement for 1000 W metal halide/HID/HPS installations in high-mast and area lighting applications.

Features
  • Original Philips Lumileds LEDs
  • Meanwell HLG-480H LED driver
  • Non-dimmable
  • IP65 rated
  • IK08 impact rating
  • Warm white 3000K colour temperature
  • High efficacy: 140 lm/W
  • Long lifespan: 80,000 hours
  • Surge protection: 10 kV

Product specifications (table)
Product SKU: JNHM1-450S-3000-A2-ND
Power Consumption: 450 W
Input Voltage: 120-277 V AC (347~488 V AC optional)
Beam Angle (°): 50°x140° (Type II)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 3000
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 50°x140° (Fixed)
Beam Angle Format: Type_II
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Fixture Height (mm): 854 mm
Fixture Length (mm): 610 mm
Fixture Width (mm): 238 mm
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W

Packaging & Shipping (table)
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854
Fixture Width (mm): 238
Fixture Length (mm): 610

Technical specifications
  • SKU: JNHM1-450S-3000-A2-ND
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage: 120-277 V AC (347~488 V AC optional)
  • Input Cable: H07RN-F 3G1.0
  • Beam Angle: 50°x140° (Type II)
  • Total Lumens: 63,500 lm
  • Efficacy: 140 lm/W
  • LED Type: Philips Lumileds
  • LED Driver: Meanwell HLG-480H
  • Colour Temperature: 3000 K (warm white)
  • CRI: >70
  • IP Rating: IP65
  • IK Rating: IK08
  • Dimming: Non-dimmable
  • Surge Protection: 10 kV
  • Power Factor: >0.95
  • Lifespan: 80,000 hours
  • Housing Colour: Marine-Grey
  • Lens Material: Tempered Glass
  • Operating Temperature: -20°C to 45°C
  • Operating Humidity: 10%–95% RH
  • Warranty: 5 years
  • Number of LED Modules: 4
  • Fixture Dimensions (HxLxW): 854 x 610 x 238 mm
  • Net Weight: 30 kg

Catalogs

No catalogs are available for this product.

See all of JNLED‘s catalogs
