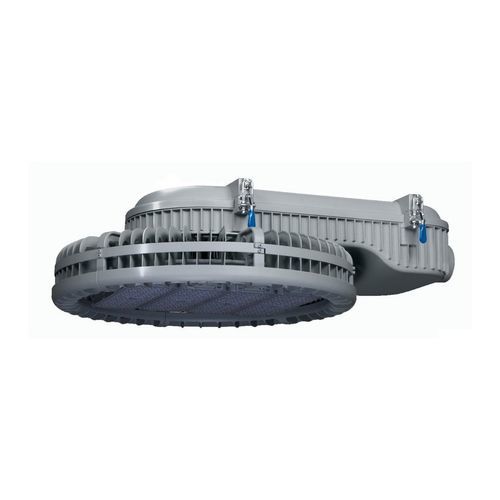

IP65 floodlight JNHM1-450S-3000-A1-DIMLEDfor stadiumoutdoor
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- for stadium
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Dimmable
- dimmable
- Other characteristics
- energy-saving, high-efficiency, IK08
- Height
Min.: 320 mm
(13 in)Max.: 320 mm
(13 in)- Length
Min.: 900 mm
(35 in)Max.: 900 mm
(35 in)- Width
Min.: 700 mm
(28 in)Max.: 700 mm
(28 in)- Power
Min.: 450 W
(0.61 hp)Max.: 495 W
(0.67 hp)- Luminous flux
Min.: 63,500 lm
Max.: 63,500 lm
- Color temperature
Min.: 3,000 K
Max.: 3,000 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description
Product summary
450 W LED high-mast light JNHM1-450S-3000-A1-DIM with Philips Lumileds LEDs and Meanwell HLG-480H driver. Warm white (3000 K), dimmable (0-10V), IP65 housing. Replaces 1000 W metal halide/HID fixtures while delivering approx. 63,500 lm.
Features
Product specifications
Packaging & Shipping
Technical specifications
450 W LED high-mast light JNHM1-450S-3000-A1-DIM with Philips Lumileds LEDs and Meanwell HLG-480H driver. Warm white (3000 K), dimmable (0-10V), IP65 housing. Replaces 1000 W metal halide/HID fixtures while delivering approx. 63,500 lm.
Features
- Original Philips Lumileds LEDs
- Meanwell HLG-480H LED driver
- Dimmable control: 0-10V
- IP65-rated, marine-grey housing
- High efficacy: 140 lm/W
- Rated lifetime: 80,000 hours
- Surge protection: 10 kV
Product specifications
- SKU: JNHM1-450S-3000-A1-DIM
- Power consumption: 450 W (system power 495 W)
- Input voltage: 120–277V AC (347–488V AC optional)
- Color temperature: 3000 K (warm white)
- Color rendering index: >70 (CRI)
- Total luminous flux: 63,500 lm
- Efficacy: 140 lm/W
- Beam angle: 30° × 100° (Type I, fixed)
- Number of LED modules: 4
- LED type: Philips Lumileds
- LED driver brand: Meanwell HLG-480H
- Lens material: tempered glass
- IK rating: IK08
- Power factor: >0.95
Packaging & Shipping
- Net weight: 30 kg
- Export carton dimensions: 900 × 700 × 320 mm
- Products per carton: 2
- Export carton gross weight: 34 kg
Technical specifications
- Dimming capability: 0-10V
- Input cable: H07RN-F 3G1.0
- Operating temperature: -20°C to 45°C
- Operating humidity: 10%–95% RH
- Lifespan: 80,000 hours
- Warranty: 5 years
- Surge protection: 10 kV
Catalogs
No catalogs are available for this product.
See all of JNLED‘s catalogsOther JNLED products
