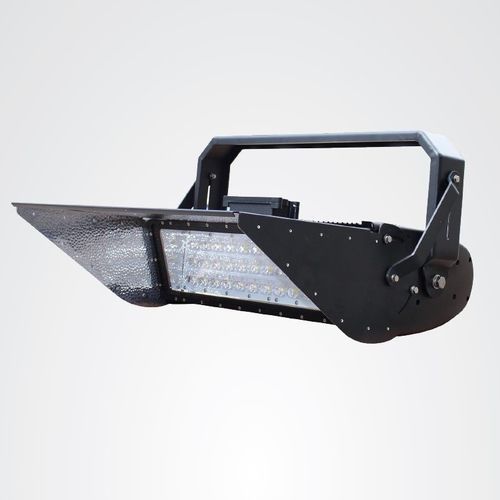

IP65 floodlight JNHM2-1250S-5700-A4-DIMLEDfor airportindustrial
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- for airport, industrial, for stadium
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Beam type
- spot
- Dimmable
- dimmable
- Other characteristics
- IK08, high-efficiency
- Height
Max.: 550 mm
(22 in)Min.: 550 mm
(22 in)- Length
Max.: 480 mm
(19 in)Min.: 480 mm
(19 in)- Width
Max.: 320 mm
(13 in)Min.: 320 mm
(13 in)- Power
Max.: 1,250 W
(1.7 hp)Min.: 1,250 W
(1.7 hp)- Luminous flux
Max.: 143,500 lm
Min.: 143,500 lm
- Color temperature
Max.: 5,700 K
Min.: 5,700 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Overview
Key features
Technical specifications
Applications
Installation & maintenance
- High-output cool-white LED high-mast floodlight designed for outdoor high-mast installations, with IP65 protection and 0-10V dimming capability.
Key features
- Original Philips Lumileds LED modules for high luminous performance
- Meanwell HLG-1000H driver with 0-10V dimming capability (dimmable)
- 30° symmetric beam angle for focused high-mast illumination
- IK08 impact rating and Marine‑Grey corrosion-resistant housing
- Surge protection 10kV and tempered glass lens
- Long-life design: 80,000 hours; 5-year warranty
Technical specifications
- Product SKU: JNHM2-1250S-5700-A4-DIM
- Power Consumption: 1250 W
- System Power (W): 1295 W
- Input Voltage: 120-277V AC (347~488V AC optional)
- Beam Angle: 30° (symmetric)
- Beam Angle Range: 15°x15° (Fixed)
- IP Rating: IP65
- IK Impact Rating: IK08
- Color Temperature: 5700 K (cool white)
- Color Rendering Index: >70
- Total Luminous Flux: 143,500 lm
- Efficacy: 120 lm/W
- LED Type: Philips Lumileds
- Number of LED Modules: 8
- LED Driver Brand: Meanwell HLG-1000H (0-10V dimming)
- Power Factor: >0.95
- Surge Protection: 10kV
- Lens Material: Tempered Glass
- Housing Colour: Marine-Grey
- Input Cable: H07RN-F 3G2.5
- Fixture Dimensions (H×L×W): 550×480×320 mm
- Operating Temperature: -20°C ~ 45°C
- Operating Humidity: 10%–95% RH
- Lifespan: 80,000 hours
- Warranty: 5 years
Applications
- Airport aprons, port terminals and container yards
- Sports stadiums and large outdoor arenas
- Industrial yards, logistics hubs and rail yards
Installation & maintenance
- Top-mount compatible with standard high-mast brackets; verify mounting interface before installation
- Driver accessible for replacement; supports 0-10V dimming control
- Use H07RN-F 3G2.5 input cable and ensure IP65 sealing procedures
- Periodic visual inspection recommended; maintain within specified temperature and humidity ranges
