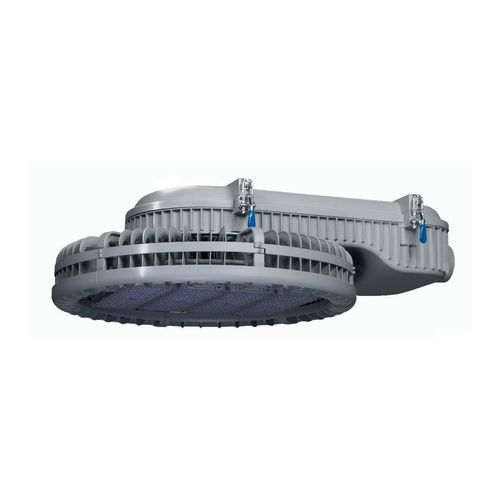

IP65 floodlight JNHM1-450S-4000-A3-DIM
LEDindustrialoutdoor

IP65 floodlight - JNHM1-450S-4000-A3-DIM - JNLED - LED / industrial / outdoor
IP65 floodlight - JNHM1-450S-4000-A3-DIM - JNLED - LED / industrial / outdoor
IP65 floodlight - JNHM1-450S-4000-A3-DIM - JNLED - LED / industrial / outdoor - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
high-efficiency, IK08, energy-saving
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 450 W
(0.61 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 4,000 K

Min.: 4,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
450 W LED high-mast floodlight JNHM1-450S-4000-A3-DIM for industrial applications. Fitted with Philips Lumileds modules and Meanwell HLG-480H drivers. Dimmable (0-10V), Type III distribution (40°x140°), IP65 and IK08 for outdoor and high-mast installations requiring long life and high lumen output.

Features
  • Dimmable (0-10V)
  • Philips Lumileds LED modules
  • Meanwell HLG-480H LED driver
  • Ingress protection IP65, impact protection IK08
  • Surge protection 10kV
  • Marine-grey corrosion-resistant housing
  • Rated life up to 80,000 hours
  • High efficacy: 140 lm/W, total 63,500 lm


Product specifications
Product SKU: JNHM1-450S-4000-A3-DIM
Power Consumption: 450 W
System Power: 495 W
Input Voltage: 120-277V AC (optional 347~488V AC)
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-480H
Number of LED Modules: 4
Total Lumens: 63,500 lm
Efficacy: 140 lm/W
Beam Angle: 40°x140° (Type III)
Color Temperature: 4000 K
CRI: >70
IP Rating: IP65
IK Rating: IK08
Dimming: 0-10V
Surge Protection: 10kV
Lens Material: Tempered Glass
Housing Colour: Marine-Grey
Fixture Dimensions (H×L×W): 854 × 610 × 238 mm
Net Weight: 30 kg
Warranty: 5 years
Operating Temp: -20°C to 45°C
Operating Humidity: 10%–95% RH
Lifespan: 80,000 hours

Technical specifications
  • Product SKU: JNHM1-450S-4000-A3-DIM
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage Range: 120-277V AC / optional 347~488V AC
  • LED Type: Philips Lumileds
  • LED Driver Brand: Meanwell HLG-480H
  • LED Modules: 4 modules
  • Total Luminous Flux: 63,500 lm
  • Efficacy: 140 lm/W
  • Beam Angle: 40°x140° (fixed) — Type III
  • Lens: Tempered Glass
  • IP: IP65
  • IK: IK08
  • CCT: 4000 K
  • CRI: >70
  • Dimming: 0-10V
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G1.0
  • Operating Temperature Range: -20°C to 45°C
  • Operating Humidity Range: 10%–95% RH
  • Lifespan: 80,000 hours
  • Housing Colour: Marine-Grey
  • Dimensions (H×L×W): 854 × 610 × 238 mm
  • Net Weight: 30 kg
  • Warranty: 5 years
