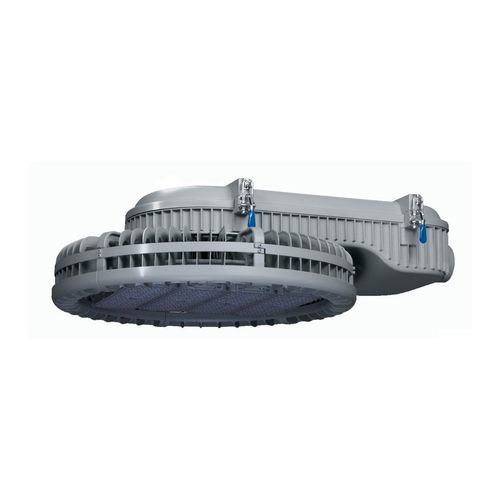

IP65 floodlight JNHM1-450S-3000-A2-DIM
LEDindustrialoutdoor

IP65 floodlight - JNHM1-450S-3000-A2-DIM - JNLED - LED / industrial / outdoor
IP65 floodlight - JNHM1-450S-3000-A2-DIM - JNLED - LED / industrial / outdoor
IP65 floodlight - JNHM1-450S-3000-A2-DIM - JNLED - LED / industrial / outdoor - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
high-efficiency, energy-saving, IK08
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 450 W
(0.61 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 3,000 K

Min.: 3,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
450 W LED high-mast luminaire JNHM1-450S-3000-A2-DIM equipped with original Philips Lumileds and Meanwell HLG-480H driver. Dimmable (0-10V). IP65 ingress protection, IK08 impact rating. High efficacy 140 lm/W and total output 63,500 lm. Warm white 3000 K. Suitable for industrial high-mast and large-area outdoor applications, replacing conventional metal halide/HID/HPS luminaires.

Features
  • Original Philips Lumileds LEDs
  • Meanwell HLG-480H driver
  • Dimmable (0-10V)
  • IP65 ingress protection
  • IK08 impact rating
  • Marine-Grey housing
  • High efficacy: 140 lm/W


Product specifications
  • Product SKU: JNHM1-450S-3000-A2-DIM
  • Power consumption: 450 W
  • Input voltage: 120-277 V (347~488 V optional)
  • System power: 495 W
  • Beam angle: 50°×140° (Type II)
  • IP rating: IP65
  • Color rendering index (CRI): >70
  • LED type: Philips Lumileds
  • Color temperature: 3000 K
  • IK impact rating: IK08
  • Dimming capability: 0-10V
  • Housing colour: Marine-Grey
  • Power factor: >0.95
  • Surge protection: 10 kV
  • Input cable: H07RN-F 3G1.0
  • Operating temperature: -20°C to 45°C
  • Operating humidity: 10%–95% RH
  • Lifespan: 80,000 hours
  • Number of LED modules: 4
  • LED driver brand: Meanwell HLG-480H
  • Lens material: Tempered glass
  • Total lumens output: 63,500 lm
  • Efficacy: 140 lm/W
  • Fixture dimensions (H×L×W): 854 × 610 × 238 mm
  • Net weight: 30 kg


Packaging & Shipping
  • Net weight: 30 kg
  • Export carton dimensions: 900 × 700 × 320 mm
  • Products per carton: 2
  • Export carton gross weight: 34 kg


Technical specifications
  • Power: 450 W
  • Input voltage: 120-277 V (optional 347~488 V AC)
  • Beam angle: 50°×140° (Type II / Type LL)
  • IP rating: IP65
  • CRI: >70
  • LED type: Philips Lumileds
  • Colour temperature: 3000 K
  • IK rating: IK08
  • Dimming: 0-10V
  • Housing colour: Marine-Grey
  • Warranty: 5 years
  • Power factor: >0.95
  • Surge protection: 10 kV
  • Input cable: H07RN-F 3G1.0
  • Operating temperature range: -20°C to 45°C
  • Humidity range: 10%–95% RH
  • Lifespan: 80,000 hours
  • Number of LED modules: 4
  • LED driver: Meanwell HLG-480H
  • Lens: Tempered glass
  • System power: 495 W
  • Total lumens: 63,500 lm
  • Efficacy: 140 lm/W
  • Fixture dimensions (H×L×W): 854 × 610 × 238 mm
  • Net weight: 30 kg
