IP65 floodlight JNHM2-1250S-5000-A4-ND

LEDoutdoorpole-mounted

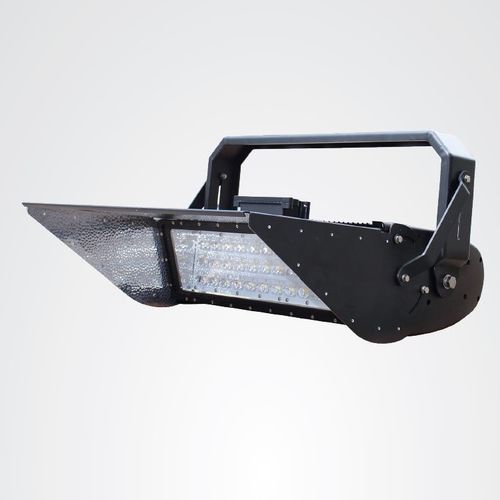

1250 W LED floodlight designed for high-mast and large-area outdoor lighting applications. Equipped with Philips Lumileds LEDs and Meanwell drivers; non-dimmable and rated IP65. Suitable as a retrofit replacement for metal halide/HID/HPS luminaires.

Features

• High-output LED solution for high-mast and floodlighting installations
• Weather and impact resistance suitable for outdoor operation (IP65, IK08)
• High efficacy and long rated life to reduce maintenance intervals

Technical specifications

• Product SKU: JNHM2-1250S-5000-A4-ND
• Power Consumption: 1250 W
• System Power: 1295 W
• Input Voltage: 120-277 V (standard)
• Input Voltage Range (optional): 120-277 V AC / 347-488 V AC (optional)
• Beam Angle: 60°x60° (symmetric, fixed)
• IP Rating: IP65
• IK Impact Rating: IK08
• Color Rendering Index (CRI): >70
• Colour Temperature: 5000 K
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-1000H
• Number of LED Modules: 8 modules
• Lens Material: Tempered glass
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G2.5
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Lifespan: 80,000 hours
• Total Lumens Output: 143,500 lm
• Efficacy: 120 lm/W
• Fixture Height: 550 mm
• Fixture Length: 480 mm
• Fixture Width: 320 mm

Packaging & Shipping

• Net Weight: 23 kg
• Export Carton Dimensions: 900 x 1350 x 487 mm
• Products per Carton: 2
• Export Carton Gross Weight: 26 kg
