IP65 floodlight JNHM1-450S-4000-A5-DIM
LEDfor stadiumoutdoor

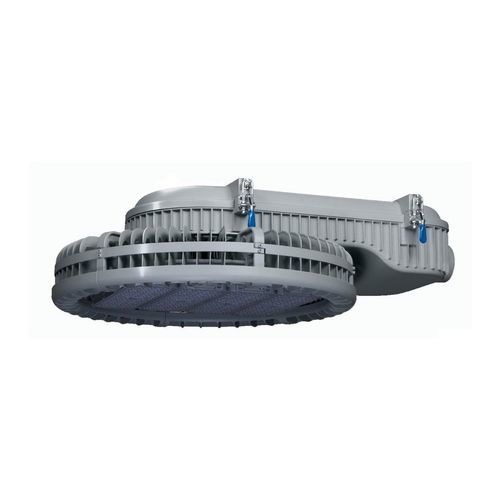

IP65 floodlight - JNHM1-450S-4000-A5-DIM - JNLED - LED / for stadium / outdoor
IP65 floodlight - JNHM1-450S-4000-A5-DIM - JNLED - LED / for stadium / outdoor
IP65 floodlight - JNHM1-450S-4000-A5-DIM - JNLED - LED / for stadium / outdoor - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK08, high-efficiency, energy-saving
Height

Max.: 854 mm
(34 in)

Min.: 854 mm
(34 in)

Length

Max.: 610 mm
(24 in)

Min.: 610 mm
(24 in)

Width

Max.: 238 mm
(9 in)

Min.: 238 mm
(9 in)

Power

Max.: 450 W
(0.61 hp)

Min.: 450 W
(0.61 hp)

Luminous flux

Max.: 63,500 lm

Min.: 63,500 lm

Color temperature

Max.: 4,000 K

Min.: 4,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 71 unit

Description

Short description
450 Watt LED flood/high-mast luminaire fitted with original Philips Lumileds modules and Meanwell HLG-480H driver. Dimmable (0-10V). IP65. Replaces 100 Watt metal halide/HID/HPS.

Features
  • Original Philips Lumileds LED modules
  • Meanwell HLG-480H LED driver
  • Dimmable (0-10V)
  • IP65 rating, IK08 impact resistance
  • High efficacy: 140 lm/W, total output 63,500 lm
  • Surge protection 10kV; Power factor >0.95
  • Long lifespan (80,000 hours)


Product specifications
Product SKU: JNHM1-450S-4000-A5-DIM
Power Consumption: 450 W
System Power (W): 495 W
Input Voltage: 120-277 V AC (347~488 V AC optional)
Beam Angle (°): 140°×140° (Fixed) — Type V
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >70
Color Temperature (K): 4000 K
LED Type: Philips Lumileds
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Fixture Dimensions (H×L×W): 854 mm × 610 mm × 238 mm
Warranty Period: 5 years

Packaging & Shipping
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg

Technical specifications
  • SKU: JNHM1-450S-4000-A5-DIM
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage: 120-277 V AC (347~488 V AC optional)
  • Beam Angle: 140°×140° (Fixed)
  • Beam Angle Format: Type V
  • IP Rating: IP65
  • IK Rating: IK08
  • CRI: >70
  • Colour Temperature: 4000 K
  • LED Type: Philips Lumileds
  • Number of LED Modules: 4
  • LED Driver: Meanwell HLG-480H
  • Lens Material: Tempered Glass
  • Total Lumens Output: 63,500 lm
  • Efficacy: 140 lm/W
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G1.0
  • Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10%-95% RH
  • Lifespan: 80,000 hours
  • Fixture Dimensions (H×L×W): 854 mm × 610 mm × 238 mm
  • Net Weight: 30 kg
  • Warranty: 5 years
