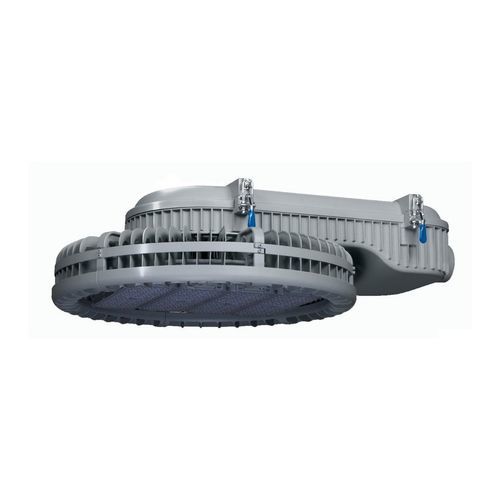

IP65 floodlight JNHM1-450S-4000-A5-ND
LEDfor parking lotfor stadium

IP65 floodlight - JNHM1-450S-4000-A5-ND - JNLED - LED / for parking lot / for stadium
IP65 floodlight - JNHM1-450S-4000-A5-ND - JNLED - LED / for parking lot / for stadium
IP65 floodlight - JNHM1-450S-4000-A5-ND - JNLED - LED / for parking lot / for stadium - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for parking lot, for stadium, for sports fields
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
not dimmable
Other characteristics
IK08
Height

Min.: 854 mm
(34 in)

Max.: 854 mm
(34 in)

Length

Min.: 610 mm
(24 in)

Max.: 610 mm
(24 in)

Width

Min.: 238 mm
(9 in)

Max.: 238 mm
(9 in)

Power

Min.: 450 W
(0.61 hp)

Max.: 450 W
(0.61 hp)

Luminous flux

Min.: 63,500 lm

Max.: 63,500 lm

Color temperature

Min.: 4,000 K

Max.: 4,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Short description
450 Watt LED flood light equipped with original Philips Lumileds and Meanwell HLG-480H driver. Non-dimmable. IP65 rated. Designed for high-mast and large-area lighting applications. Replaces 100 Watt metal halide/HID/HPS.

Features
  • Power: 450 W
  • LED: Philips Lumileds
  • Driver: Meanwell HLG-480H
  • Non-dimmable
  • IP Rating: IP65
  • Beam angle: 140°x140° (Type V)
  • Total lumens: 63,500 lm
  • Efficacy: 140 lm/W
  • Colour temperature: 4000 K (natural white)
  • CRI: >70
  • IK rating: IK08
  • Housing colour: Marine-Grey
  • Surge protection: 10 kV
  • Power factor: >0.95
  • Input cable: H07RN-F 3G1.0
  • Working temp range: -20°C ~ 45°C
  • Working humidity range: 10% - 95% RH
  • Lifespan: 80,000 hours


Product specifications (table)
  • Product SKU: JNHM1-450S-4000-A5-ND
  • Power Consumption: 450 W
  • System Power: 495 W
  • Input Voltage: 120-277V AC (optional 347~488V AC)
  • Input Voltage (alternate): 120-277
  • Beam Angle (°): 140°x140°
  • Beam Angle Format: Type_v
  • IP Rating: IP65
  • Color Rendering Index: >70
  • LED Type: Philips Lumileds
  • Number of LED Modules: 4 modules
  • LED Driver Brand: Meanwell HLG-480H
  • Total Lumens Output: 63,500 lm
  • Efficacy (lm/W): 140 lm/W
  • Color Temperature (K): 4000
  • IK Impact Rating: IK08
  • Dimming Capability: Non-dimmable
  • Housing Colour: Marine-Grey
  • Lens Material: Tempered Glass
  • Surge Protection: 10kV
  • Power Factor: >0.95
  • Input Cable: H07RN-F 3G1.0
  • Fixture Height (mm): 854
  • Fixture Length (mm): 610
  • Fixture Width (mm): 238
  • Total Lumens: 63,500 lm
  • Lifespan (Hours): 80,000 hours
  • Warranty Period (Years): 5


Packaging & Shipping
  • Net Weight (kg): 30 kg
  • Export Carton Dimensions (mm): 900×700×320 mm
  • Products per Carton: 2
  • Export Carton Gross Weight (kg): 34 kg
  • Fixture Height (mm): 854
  • Fixture Width (mm): 238
  • Fixture Length (mm): 610


Technical characteristics / spécifications techniques
  • Model / Series: JNHM1 series
  • Power consumption: 450 W (system power 495 W)
  • Input voltage: 120-277V AC (optional 347~488V AC)
  • LED type: Philips Lumileds
  • Driver: Meanwell HLG-480H
  • Luminous output: 63,500 lm
  • Efficacy: 140 lm/W
  • Beam angle: 140°x140° (Type V)
  • Colour temperature: 4000 K
  • CRI: >70
  • IP rating: IP65
  • IK rating: IK08
  • Surge protection: 10 kV
  • Power factor: >0.95
  • Input cable: H07RN-F 3G1.0
  • Lens material: Tempered Glass
  • Number of LED modules: 4
  • Working temperature: -20°C to 45°C
  • Working humidity: 10%–95% RH
  • Lifespan: 80,000 hours
  • Warranty: 5 years
  • Fixture dimensions (H×L×W): 854 × 610 × 238 mm
  • Net weight: 30 kg
