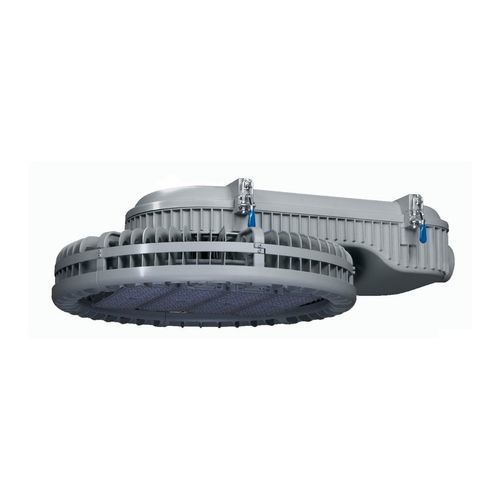

IP65 floodlight JNHM1-450S-4000-A2-ND

LEDfor sports fieldsfor stadium

Short description
450 W LED flood light designed for high-mast and large-area outdoor applications. Fitted with Philips Lumileds modules and Meanwell driver(s). Non-dimmable. IP65 rating for wet environments. Replaces 1000 W metal halide/HID/HPS installations with high luminous output.

Features

• Original Philips Lumileds LED modules
• Meanwell HLG-480H LED driver
• Non-dimmable
• IP65 rated for outdoor use
• IK08 impact rating
• Surge protection 10 kV
• High efficacy: 140 lm/W and long lifespan (~80,000 hours)
• Marine-grey corrosion-resistant housing

Product specification table
Product SKU: JNHM1-450S-4000-A2-ND
Power Consumption: 450 W
System Power (W): 495 W
Input Voltage: 120-277 V (standard); 347–488 V AC (optional)
Beam Angle (°): 50°x140° (fixed)
Beam Angle Format: Type_ii
LED Type: Philips Lumileds
Color Temperature (K): 4000 K (natural white)
Color Rendering Index: >70
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Dimming Capability: Non-dimmable
IP Rating: IP65
IK Impact Rating: IK08
Lens Material: Tempered Glass
Housing Colour: Marine-Grey
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C to 45°C
Working Humidity Range: 10%–95% RH
Lifespan (Hours): ~80,000 hours
Fixture Dimensions (H×L×W): 854 × 610 × 238 mm
Net Weight: 30 kg
Warranty Period (Years): 5

Packaging & Shipping
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854
Fixture Width (mm): 238
Fixture Length (mm): 610

Specification Details
Robust LED flood light for high-mast installation, delivering 63,500 lm at 4000 K. Suitable for sports venues, ports, yards and large outdoor areas requiring Type II distribution (50°x140°). Standard input 120–277 V with optional 347–488 V configuration.

Technical specifications

• SKU: JNHM1-450S-4000-A2-ND
• Power consumption: 450 W (system 495 W)
• Input voltage / Range: 120–277 V (standard); 347–488 V AC optional
• LED type: Philips Lumileds
• LED driver: Meanwell HLG-480H
• Number of LED modules: 4
• Color temperature: 4000 K
• CRI: >70
• Beam angle: 50°x140° (Type II)
• Total lumens: 63,500 lm
• Efficacy: 140 lm/W
• Power factor: >0.95
• Surge protection: 10 kV
• Dimming: Non-dimmable
• Lens material: Tempered Glass
• Housing colour: Marine-Grey
• IK rating: IK08
• IP rating: IP65
• Working temperature: -20°C to 45°C
• Working humidity: 10%–95% RH
• Lifespan: ~80,000 hours
• Input cable: H07RN-F 3G1.0
• Fixture dimensions (H×L×W): 854 × 610 × 238 mm
• Net weight: 30 kg
• Warranty: 5 years
