IP65 floodlight JNHM2-1250S-5700-A3-ND
LEDindustrialroad

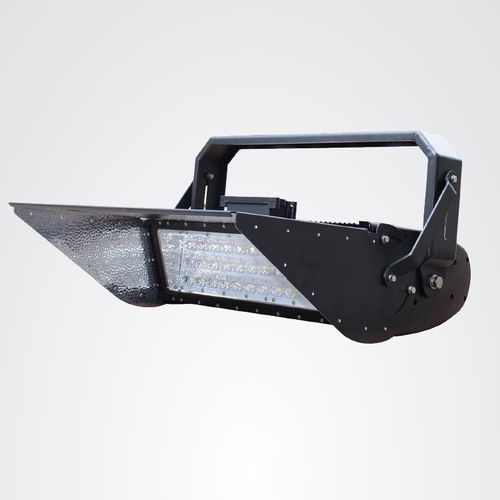

IP65 floodlight - JNHM2-1250S-5700-A3-ND - JNLED - LED / industrial / road
IP65 floodlight - JNHM2-1250S-5700-A3-ND - JNLED - LED / industrial / road
IP65 floodlight - JNHM2-1250S-5700-A3-ND - JNLED - LED / industrial / road - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
industrial, road, for stadium, for airport
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Beam type
spot
Dimmable
not dimmable
Other characteristics
long range, IK08, energy-saving, high-intensity
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,250 W
(1.7 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,700 K

Min.: 5,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Product overview
The JNHM2-1250S-5700-A3-ND is a 1250 W cool white (5700 K) non-dimmable LED high-mast floodlight equipped with Philips Lumileds and Meanwell driver(s). Designed as a high-output, energy-efficient replacement for metal halide/HID/HPS fixtures, it delivers a narrow symmetric 15°x15° fixed beam for focused long-range illumination and is suitable for outdoor use (IP65).

Applications
  • High-mast stadium and arena lighting
  • Port, container yard and logistics area illumination
  • Highway and interchange lighting
  • Large industrial yards and mining sites
  • Airport aprons and perimeter lighting


Key features
  • High luminous output: 143,500 lm at 120 lm/W efficacy
  • Narrow symmetric 15°x15° fixed beam for focused lighting
  • Durable outdoor rating: IP65 and IK08 impact resistance
  • Reliable components: Philips Lumileds LEDs and Meanwell HLG-1000H driver
  • Surge protection (10 kV), power factor >0.95 and long lifetime (~80,000 h)


Technical specifications
  • Product SKU: JNHM2-1250S-5700-A3-ND
  • Power Consumption: 1250 W
  • System Power: 1295 W
  • Input Voltage / Input Voltage Range: 120-277V AC (standard); 120-277V AC / 347~488V AC (optional)
  • Beam Angle (°): 15°; Beam Angle Range: 15°x15° (Fixed); Beam Angle Format: Symmetric
  • IP Rating: IP65
  • IK Impact Rating: IK08
  • Color Temperature (K): 5700 K
  • Color Rendering Index (CRI): >70
  • LED Type: Philips Lumileds
  • Number of LED Modules: 8 modules
  • LED Driver Brand: Meanwell HLG-1000H
  • Dimming Capability: Non-dimmable
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G2.5
  • Lens Material: Tempered Glass
  • Total Lumens Output: 143,500 lm
  • Efficacy: 120 lm/W
  • Lifespan: 80,000 hours
  • Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10% - 95% RH
  • Housing Colour: Marine-Grey
  • Warranty Period: 5 years
  • Fixture Height: 550 mm
  • Fixture Length: 480 mm
  • Fixture Width: 320 mm
  • Net Weight: 23 kg
  • Export Carton Dimensions: 900 x 1350 x 487 mm
  • Products per Carton: 2
  • Export Carton Gross Weight: 26 kg
