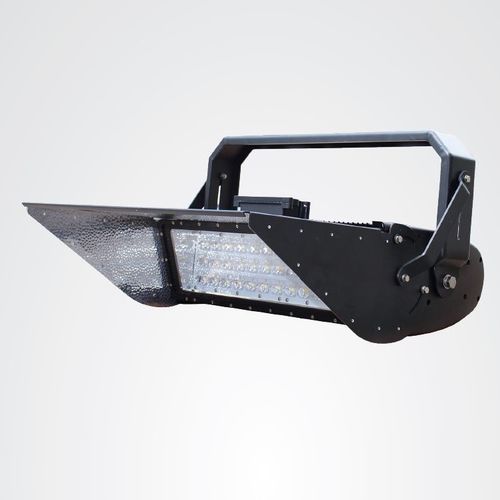

IP65 floodlight JNHM2-1250S-5700-A3-DIM

LEDfor sports fieldsfor stadium

Overview
High-power 1250 W LED high-mast floodlight with modular LED construction for selectable far, medium and short throw patterns. Designed for high-output site and area lighting with dimmable control (0-10V) and retrofit capability for older HID/metal halide installations.

Key features

• Modular LED configuration suitable for multiple throw patterns (far / medium / short).
• High total luminous output: 143,500 lm with 120 lm/W efficacy.
• Dimmable (0-10V) for adjustable light levels and energy management.
• IP65 ingress protection and IK08 impact rating for outdoor industrial use.
• Designed as retrofit/replacement for HID/metal halide systems.

Technical specifications

• Product SKU: JNHM2-1250S-5700-A3-DIM
• Power Consumption: 1250 W (System Power: 1295 W)
• Input Voltage: 120–277 V AC (347–488 V AC optional)
• Beam Angle: 60° (fixed 15°x15° option); symmetric format
• IP Rating: IP65
• IK Rating: IK08
• CRI: >70
• Colour Temperature: 5700 K (cool white)
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Dimming: 0-10V
• Surge Protection: 10 kV
• Power Factor: >0.95
• Working Temp: -20°C to 45°C
• Working Humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Number of LED Modules: 8
• Lens: Tempered glass
• Fixture Dimensions (H×L×W): 550 × 480 × 320 mm
• Net Weight: 23 kg
• Total Lumens: 143,500 lm
• Efficacy: 120 lm/W

Applications

• High-mast sports and stadium lighting
• Ports, container yards and logistics hubs
• Airfield apron and perimeter lighting
• Large outdoor industrial and mining sites

Packaging & ordering

• Product per carton: 2
• Export carton dimensions: 900 × 1350 × 487 mm
• Export carton gross weight: 26 kg (net weight per unit: 23 kg)
• Contact supplier for lead times, mounting accessories and voltage options.
