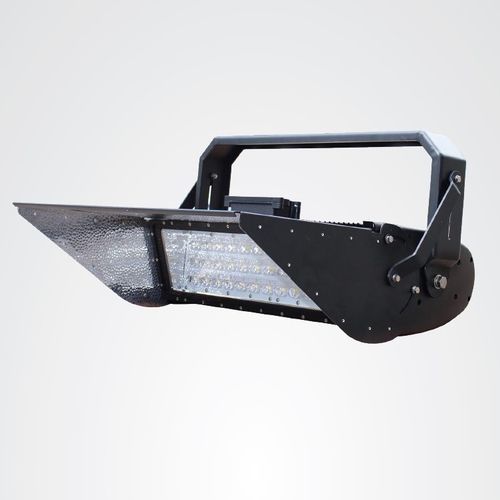

IP65 floodlight JNHM2-1250S-5000-A2-DIMLEDfor airportfor stadium
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- for airport, for stadium, industrial, for parking lot
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Beam type
- spot
- Dimmable
- dimmable
- Other characteristics
- energy-saving, high-intensity, high-efficiency, IK08
- Height
Min.: 550 mm
(22 in)Max.: 550 mm
(22 in)- Length
Min.: 480 mm
(19 in)Max.: 480 mm
(19 in)- Width
Min.: 320 mm
(13 in)Max.: 320 mm
(13 in)- Power
Min.: 1,250 W
(1.7 hp)Max.: 1,250 W
(1.7 hp)- Luminous flux
Min.: 143,500 lm
Max.: 143,500 lm
- Color temperature
Min.: 5,000 K
Max.: 5,000 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description
Overview
1250 Watt LED high-mast flood light engineered for industrial and outdoor installations. Fitted with original Philips Lumileds LEDs and Meanwell HLG-1000H driver(s). Dimmable via 0-10V control and rated IP65 for dust and water protection.
Key features
Technical specifications
Applications
Certifications & warranty
1250 Watt LED high-mast flood light engineered for industrial and outdoor installations. Fitted with original Philips Lumileds LEDs and Meanwell HLG-1000H driver(s). Dimmable via 0-10V control and rated IP65 for dust and water protection.
Key features
- High output 1250 W LED flood light
- Original Philips Lumileds LEDs
- Meanwell HLG-1000H driver(s), dimmable 0-10V
- IP65 ingress protection and IK08 impact rating
- Cool white 5000 K colour temperature, CRI >70
- High efficacy 120 lm/W with total output 143,500 lm
- Surge protection 10 kV
- Designed to replace 1000 W metal halide / HID / HPS systems
Technical specifications
- Power Consumption: 1250 W
- System Power: 1295 W
- Input Voltage: 120-277V AC (347~488V AC optional)
- Beam Angle: 60°x60° (fixed), symmetric
- IP Rating: IP65
- Colour Rendering Index (CRI): >70
- LED Type: Philips Lumileds
- Colour Temperature: 5000 K
- IK Impact Rating: IK08
- Dimming Capability: 0-10V
- Housing Colour: Marine-Grey
- Warranty Period: 5 years
- Power Factor: >0.95
- Surge Protection: 10 kV
- Input Cable: H07RN-F 3G2.5
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 95% RH
- Lifespan: 80,000 hours
- Number of LED Modules: 8 modules
- LED Driver Brand: Meanwell HLG-1000H
- Lens Material: Tempered Glass
- Fixture Height: 550 mm
- Fixture Length: 480 mm
- Fixture Width: 320 mm
- Total Lumens Output: 143,500 lm
- Efficacy: 120 lm/W
- Net Weight: 23 kg
- Export Carton Dimensions: 900 x 1350 x 487 mm
- Products per Carton: 2
- Export Carton Gross Weight: 26 kg
Applications
- Industrial yards and production sites
- Ports, container terminals and logistics hubs
- Sports arenas and stadia
- Airport aprons and ground operations
- Outdoor storage and large-area site lighting
Certifications & warranty
- IP65, IK08, surge protection 10 kV
- Designed for replacement of 1000 W HID/HPS installations
- Rated lifespan 80,000 hours
- Manufacturer warranty: 5 years
