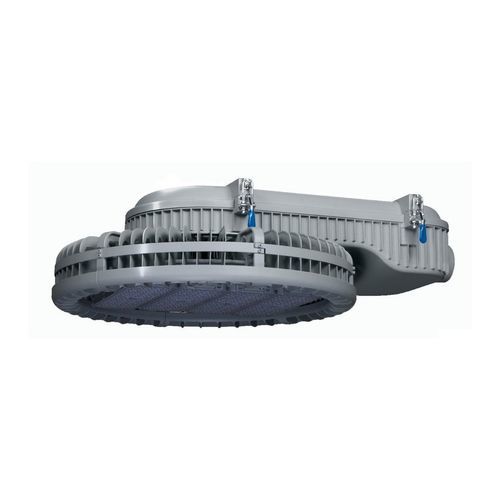

IP65 floodlight JNHM1-450S-3000-A3-DIM
LEDfor stadiumindustrial

IP65 floodlight - JNHM1-450S-3000-A3-DIM - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM1-450S-3000-A3-DIM - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM1-450S-3000-A3-DIM - JNLED - LED / for stadium / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, industrial
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
long range, IK08, energy-saving
Height

Min.: 854 mm
(34 in)

Max.: 854 mm
(34 in)

Length

Min.: 610 mm
(24 in)

Max.: 610 mm
(24 in)

Width

Min.: 238 mm
(9 in)

Max.: 238 mm
(9 in)

Power

Min.: 450 W
(0.61 hp)

Max.: 450 W
(0.61 hp)

Luminous flux

Min.: 63,500 lm

Max.: 63,500 lm

Color temperature

Min.: 3,000 K

Max.: 3,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Product overview
450 W LED high-mast floodlight designed for industrial and external high-mast installations. Warm white 3000 K output, dimmable via 0-10V control, IP65-rated for outdoor use. Equipped with Philips Lumileds and Meanwell HLG-480H driver for stable performance.

Key features
  • Power: 450 W (system power 495 W)
  • Warm white 3000 K
  • Dimmable (0-10V)
  • IP65 ingress protection
  • Philips Lumileds LED modules
  • Meanwell HLG-480H LED driver
  • Tempered glass lens
  • IK08 impact resistance
  • Surge protection: 10 kV
  • Lifespan: 80,000 hours
  • Efficacy: 140 lm/W (total 63,500 lm)
  • Fixed beam 40°x140° (Type III)


Technical specifications
  • Product SKU: JNHM1-450S-3000-A3-DIM
  • Power consumption: 450 W
  • System power: 495 W
  • Total luminous flux: 63,500 lm
  • Efficacy: 140 lm/W
  • Input voltage: 120-277V AC (option: 347-488V AC)
  • Beam angle: 40° (40°x140° fixed, Type III)
  • LED type: Philips Lumileds
  • Number of LED modules: 4
  • LED driver: Meanwell HLG-480H
  • Color rendering index (CRI): >70
  • Power factor: >0.95
  • Dimming: 0-10V
  • Surge protection: 10 kV
  • IK rating: IK08
  • IP rating: IP65
  • Lens material: Tempered glass
  • Housing colour: Marine-Grey
  • Input cable: H07RN-F 3G1.0
  • Operating temperature: -20°C to 45°C
  • Operating humidity: 10%-95% RH
  • Lifespan: 80,000 hours
  • Fixture dimensions (H×L×W): 854 mm × 610 mm × 238 mm
  • Net weight: 30 kg
  • Warranty: 5 years


Packaging & Shipping
  • Export carton dimensions: 900×700×320 mm
  • Products per carton: 2
  • Export carton gross weight: 34 kg
  • Net weight per unit: 30 kg


Applications
  • High-mast site lighting, stadiums, ports, yards, industrial outdoor areas
