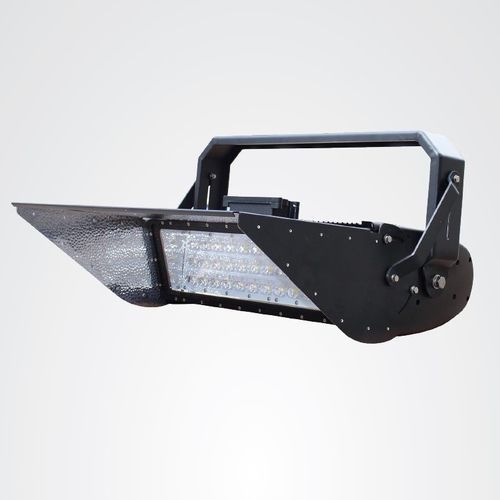

IP65 floodlight JNHM2-1250S-5000-A1-ND
LEDfor stadiumfor airport

IP65 floodlight - JNHM2-1250S-5000-A1-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5000-A1-ND - JNLED - LED / for stadium / for airport
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, for airport, industrial, for boat
Interior/exterior use
outdoor
Type
pole-mounted
Beam type
spot
Dimmable
not dimmable
Other characteristics
high-intensity, IK08
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,295 W
(1.76 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,000 K

Min.: 5,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

High-power 1250 W LED high-mast flood light JNHM2-1250S-5000-A1-ND designed for large-area illumination (stadiums, ports, industrial sites). Equipped with Philips Lumileds LED modules and a Meanwell HLG-1000H driver. Non-dimmable, IP65/IK08 impact-resistant housing with marine-grey corrosion-resistant finish.

Key features
  • High-output Philips Lumileds LED modules (8 modules)
  • Meanwell HLG-1000H LED driver (non-dimmable)
  • Beam angle: 30° symmetric (fixed)
  • Total luminous flux: 143,500 lm; efficacy 120 lm/W
  • Color temperature: 5000 K (cool white); CRI >70
  • Robust IP65 / IK08 rated housing; tempered glass lens; marine-grey finish
  • Surge protection: 10 kV; power factor >0.95
  • Lifespan: 80,000 hours; warranty: 5 years


Technical specifications
  • Product SKU: JNHM2-1250S-5000-A1-ND
  • Power consumption: 1250 W (system power 1295 W)
  • Input voltage: 120-277V AC (standard); optional 347-488V AC
  • LED type: Philips Lumileds
  • LED driver: Meanwell HLG-1000H
  • Number of LED modules: 8
  • Beam angle: 30° (symmetric); alternative format: 15°x15° (fixed)
  • Total lumens: 143,500 lm
  • Efficacy: 120 lm/W
  • CCT: 5000 K
  • CRI: >70
  • Dimming: Non-dimmable
  • IP rating: IP65; IK rating: IK08
  • Lens material: Tempered glass
  • Housing colour: Marine-grey
  • Power factor: >0.95
  • Input cable: H07RN-F 3G2.5
  • Surge protection: 10 kV
  • Operating temperature: -20°C to 45°C
  • Humidity range: 10% - 95% RH
  • Lifespan: 80,000 hours
  • Dimensions (H x L x W): 550 x 480 x 320 mm


Installation & maintenance
  • Designed for high-mast and pole mounting; refer to installation manual for mounting brackets and torque settings
  • Non-dimmable system; ensure compatible wiring, protection and correct driver installation
  • Routine inspection recommended for coastal/marine environments to monitor corrosion and sealing


Applications
  • Sports stadiums and arenas
  • Ports, docks and marine terminals
  • Large industrial yards and logistics centres
  • Airports and large outdoor facilities


Packaging & shipping
  • Net weight: 23 kg
  • Export carton dimensions: 900 x 1350 x 487 mm
  • Products per carton: 2
  • Gross weight per carton: 26 kg


Certifications & warranty
  • IP65, IK08 protection
  • Surge protection 10 kV
  • Warranty: 5 years
