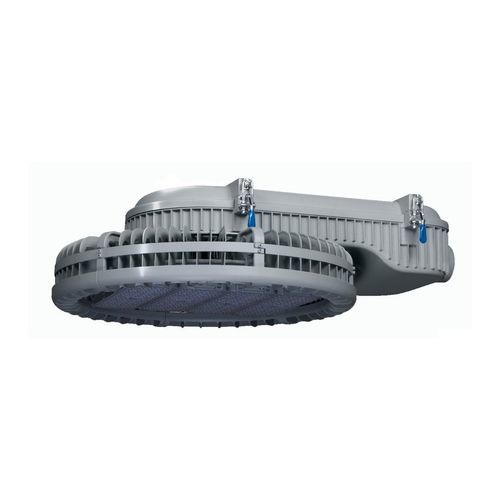

IP65 floodlight NHM1-450S-3000-A4-DIM

LEDfor stadiumoutdoor

Short description
450 Watt LED flood light, with original Philips Lumileds and Meanwell driver(s). Dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.

Features

• Power consumption: 450 W
• System power: 495 W
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-480H
• Colour temperature: 3000 K (warm white)
• Colour Rendering Index (CRI): >70
• Beam angle: 30° x 140° (fixed) — Type_i format
• Number of LED modules: 4 modules
• Total lumens output: 63,500 lm
• Efficacy: 140 lm/W
• Dimming capability: 0-10V
• Power factor: >0.95
• Surge protection: 10kV
• IK impact rating: IK08
• IP rating: IP65
• Lens material: Tempered Glass
• Housing colour: Marine-Grey
• Working temperature range: -20°C ~ 45°C
• Working humidity range: 10% - 95% RH
• Lifespan: 80,000 hours

Product specifications (table)
Product SKU: JNHM1-450S-3000-A4-DIM
Power Consumption: 450
Input Voltage: 120-277
Beam Angle (°): 30°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 3000
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 30°x140° (Fixed)
Beam Angle Format: Type_i
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Input Voltage Range: 120-277V AC/ 347~488V AC (optional)
Fixture Height (mm): 854 mm
Fixture Length (mm): 610 mm
Fixture Width (mm): 238 mm
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W

Packaging & Shipping (table)
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854
Fixture Width (mm): 238
Fixture Length (mm): 610

Technical characteristics

• Model / series: JNHM1 series
• Nominal lumen output: 63,500 lm
• Optics: 30° x 140° distribution (Type LV)
• Driver: Meanwell HLG-480H (dimmable 0-10V)
• LEDs: Original Philips Lumileds
• Ingress Protection: IP65
• Impact protection: IK08
• Operating range: -20°C to 45°C, 10%-95% RH
• Expected lifetime: 80,000 hours
• Warranty: 5 years
• Surge protection: 10kV
• Installation dimensions (HxLxW): 854 x 610 x 238 mm
• Net weight: 30 kg
