IP65 floodlight JNHM2-1250S-5000-A5-DIMLEDindustrialfor stadium
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- industrial, for stadium
- Interior/exterior use
- outdoor
- Type
- pole-mounted
- Shape
- rectangular
- Dimmable
- dimmable
- Other characteristics
- IK08
- Height
Max.: 550 mm
(22 in)Min.: 550 mm
(22 in)- Length
Max.: 480 mm
(19 in)Min.: 480 mm
(19 in)- Width
Max.: 320 mm
(13 in)Min.: 320 mm
(13 in)- Power
Max.: 1,295 W
(1.76 hp)Min.: 1,250 W
(1.7 hp)- Luminous flux
Max.: 143,500 lm
Min.: 143,500 lm
- Color temperature
Max.: 5,000 K
Min.: 5,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description

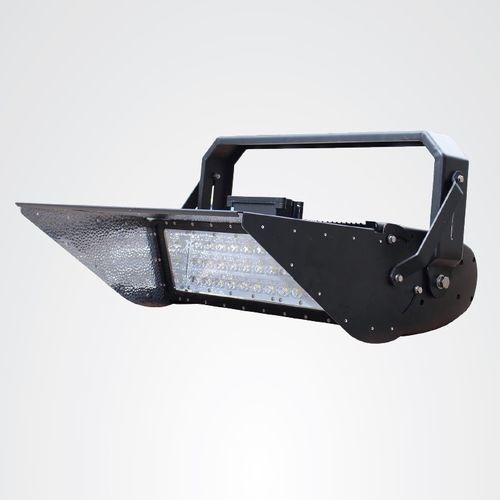

1250 Watt LED flood light with original Philips Lumileds and Meanwell driver(s). Dimmable, IP65-rated high mast fixture offering a symmetric 90°x90° beam aimed to replace traditional metal halide / HID / HPS luminaires.
Applications
Technical specifications
Applications
- High-mast lighting for ports, stadiums, yards, logistics hubs and industrial sites.
Technical specifications
- Product SKU: JNHM2-1250S-5000-A5-DIM
- Power Consumption: 1250 W
- System Power: 1295 W
- Input Voltage: 120-277 V
- Input Voltage Range (optional): 120-277V AC / 347~488V AC (optional)
- Beam Angle (°): 90°
- Beam Angle Range: 90°x90° (Fixed)
- Beam Angle Format: Symmetric
- IP Rating: IP65
- IK Impact Rating: IK08
- Color Rendering Index (CRI): >70
- LED Type: Philips Lumileds
- Number of LED Modules: 8 modules
- LED Driver Brand: Meanwell HLG-1000H
- Dimming Capability: 0-10V
- Color Temperature (K): 5000
- Power Factor: >0.95
- Surge Protection: 10kV
- Lens Material: Tempered Glass
- Housing Colour: Marine-Grey
- Fixture Height: 550 mm
- Fixture Length: 480 mm
- Fixture Width: 320 mm
- Total Lumens Output: 143,500 lm
- Efficacy: 120 lm/W
- Lifespan: 80,000 hours
- Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 95% RH
- Input Cable: H07RN-F 3G2.5
- Warranty Period: 5 years
- Net Weight (each): 23 kg
- Export Carton Dimensions: 900 x 1350 x 487 mm
- Products per Carton: 2
- Export Carton Gross Weight: 26 kg
