IP65 floodlight JNHM2-1250S-5000-A3-DIM
LEDfor stadiumindustrial

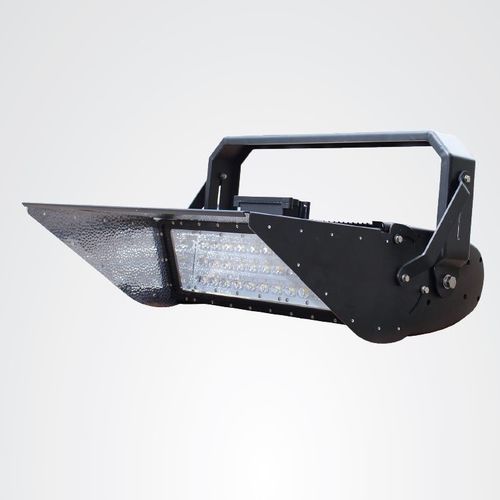

IP65 floodlight - JNHM2-1250S-5000-A3-DIM - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM2-1250S-5000-A3-DIM - JNLED - LED / for stadium / industrial
IP65 floodlight - JNHM2-1250S-5000-A3-DIM - JNLED - LED / for stadium / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, industrial, for airport
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK08
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,250 W
(1.7 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,000 K

Min.: 5,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Overview
1250 W LED floodlight designed for high-mast installations. Provides cool white 5000 K output, dimmable control and IP65 protection. Uses Philips Lumileds LEDs and Meanwell driver(s). Intended as a retrofit/replacement for 1000 W metal halide/HID/HPS fixtures.

Key specifications
  • Product SKU: JNHM2-1250S-5000-A3-DIM
  • Power consumption: 1250 W
  • System power: 1295 W
  • Total luminous flux: 143,500 lm
  • Efficacy: 120 lm/W
  • Colour temperature: 5000 K (cool white)
  • LED type: Philips Lumileds
  • Number of LED modules: 8 modules
  • LED driver: Meanwell HLG-1000H
  • Dimming: 0-10 V
  • Input voltage / range: 120-277 V AC (standard); 347-488 V AC (optional)
  • Input cable: H07RN-F 3G2.5
  • Beam angle: 60° (symmetric); fixed 15°x15° option
  • CRI: >70
  • IP rating: IP65
  • IK rating: IK08
  • Surge protection: 10 kV
  • Power factor: >0.95
  • Lens material: tempered glass
  • Housing colour: marine-grey
  • Fixture dimensions (H×L×W): 550 × 480 × 320 mm
  • Net weight: 23 kg
  • Export carton dimensions: 900 × 1350 × 487 mm
  • Products per carton: 2
  • Export carton gross weight: 26 kg
  • Operating temperature: -20°C to 45°C
  • Operating humidity: 10%–95% RH
  • Lifespan: 80,000 hours
  • Warranty: 5 years


Applications
  • High-mast stadium and arena lighting
  • Port, container yard and logistics areas
  • Airport aprons and perimeter lighting
  • Large outdoor industrial sites and yards


Installation & compatibility
  • Designed for pole/mast mounting with standard high-mast brackets
  • Compatible with 0-10 V dimming systems and common lighting controls
  • Optional input voltage range for higher-voltage networks (347–488 V)
  • Supplied with H07RN-F input cable; on-site wiring must follow local regulations


Mechanical & packaging
  • Robust marine-grey housing with tempered glass lens
  • Compact footprint for high-mast installations: 550 × 480 × 320 mm
  • Packaged 2 units per export carton


Performance & reliability
  • IP65 protection and IK08 impact rating for outdoor durability
  • 10 kV surge protection for transient immunity
  • High efficacy (120 lm/W) and power factor >0.95
  • Estimated lifetime 80,000 hours
  • 5-year warranty period
