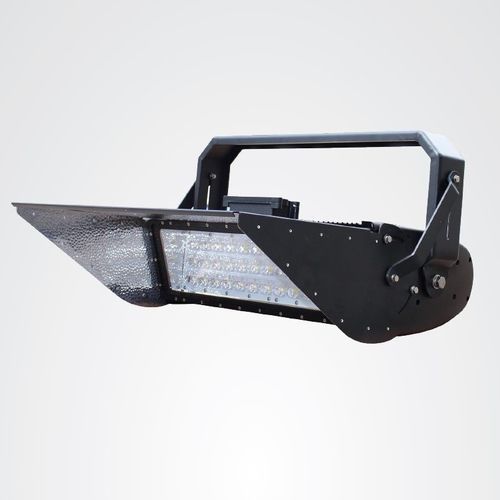

IP65 floodlight JNHM2-1250S-5700-A4-ND

LEDfor stadiumindustrial

Overview
1250 Watt LED floodlight engineered for high-mast installations. Fitted with original Philips Lumileds LEDs and Meanwell HLG-1000H driver. Non-dimmable, IP65-rated with a fixed symmetric 60°x60° beam in cool white (5700K). Delivers 143,500 lm total output and 120 lm/W system efficacy with an estimated life of 80,000 hours.

Key features

• Nominal power: 1250 W (system power: 1295 W)
• LEDs: Philips Lumileds; Driver: Meanwell HLG-1000H
• Beam: fixed symmetric 60°x60° for uniform high-mast illumination
• Colour temperature: 5700 K (cool white); CRI >70
• Protection: IP65 / IK08; surge protection 10 kV; power factor >0.95
• Dimming: non-dimmable
• Optics: tempered glass lens; 8 LED modules
• Operating range: -20°C to 45°C; humidity 10%–95% RH
• Finish: marine-grey housing; robust mounting for high-mast use

Technical specifications

• Product SKU: JNHM2-1250S-5700-A4-ND
• Total luminous flux: 143,500 lm
• Efficacy: 120 lm/W
• Rated lifetime: 80,000 hours
• Input voltage: 120–277 V AC (standard); optional 347–488 V AC
• Surge protection: 10 kV
• Input cable: H07RN-F 3G2.5
• Lens material: tempered glass
• Fixture dimensions (H×L×W): 550 × 480 × 320 mm
• Net weight: 23 kg
• Warranty: 5 years
• Packaging: export carton 900 × 1350 × 487 mm; products per carton: 2; gross weight per carton: 26 kg

Applications

• High-mast stadium and sports lighting
• Port and container yard illumination
• Airport apron and perimeter lighting
• Large industrial yards, logistics hubs and outdoor work areas

Compliance & warranty
Delivered with IP65 and IK08 protection ratings and built-in surge protection. Supplied with a 5-year warranty covering manufacturing defects under standard operating conditions.

Ordering information

• Reference: JNHM2-1250S-5700-A4-ND
• Standard voltage: 120–277 V AC; optional 347–488 V AC—confirm at order
• Contact the supplier for lead times, shipping details and customization (driver variants, mounting options)
