IP65 floodlight JNHM2-1250S-5700-A2-DIM
LEDindustrialfor stadium

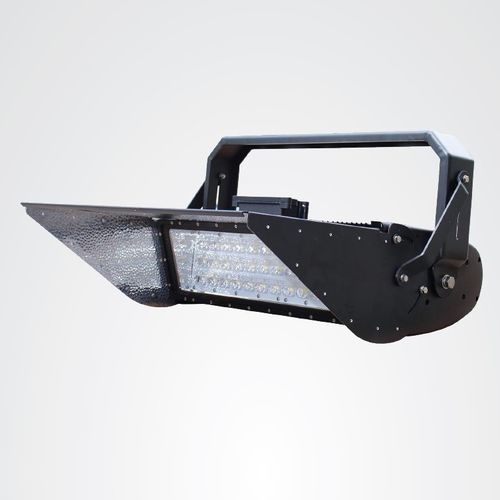

IP65 floodlight - JNHM2-1250S-5700-A2-DIM - JNLED - LED / industrial / for stadium
IP65 floodlight - JNHM2-1250S-5700-A2-DIM - JNLED - LED / industrial / for stadium
IP65 floodlight - JNHM2-1250S-5700-A2-DIM - JNLED - LED / industrial / for stadium - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
industrial, for stadium
Interior/exterior use
outdoor
Type
pole-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK08
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,250 W
(1.7 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,700 K

Min.: 5,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Overview
  • This 1250 W cool white LED high-mast flood light is engineered for large-area and high-mast installations, delivering a total output of 143,500 lm with 120 lm/W efficacy for demanding outdoor and industrial sites.
  • Equipped with Philips Lumileds LEDs and Meanwell HLG-1000H driver(s), supporting 0-10V dimming for flexible lighting control and integration with industrial control systems.
  • Designed to meet IP65 and IK08 protection levels for reliable operation in harsh environments.


Key features
  • Dimmable 0-10V high-mast LED flood light suitable for stadiums, ports, yards and large outdoor areas
  • Philips Lumileds LED modules and Meanwell HLG-1000H driver(s)
  • IP65 ingress protection and IK08 impact resistance
  • High system output: 143,500 lm; efficacy 120 lm/W
  • Estimated lifetime approximately 80,000 hours and 5-year warranty


Technical specifications
  • Product SKU: JNHM2-1250S-5700-A2-DIM
  • Power consumption: 1250 W
  • System power: 1295 W
  • Input voltage / range: 120-277V AC standard; 347-488V AC optional
  • Beam angle: 60° x 60° (symmetric)
  • IP rating: IP65
  • IK impact rating: IK08
  • Colour temperature: 5700 K (cool white)
  • Color Rendering Index (CRI): >70
  • LED type: Philips Lumileds
  • LED driver brand: Meanwell HLG-1000H
  • Number of LED modules: 8 modules
  • Lens material: Tempered glass
  • Total lumens output: 143,500 lm
  • Efficacy: 120 lm/W
  • Power factor: >0.95
  • Surge protection: 10 kV
  • Input cable: H07RN-F 3G2.5
  • Operating temperature range: -20°C to 45°C
  • Operating humidity range: 10% - 95% RH
  • Lifespan: ~80,000 hours
  • Housing colour: Marine-Grey
  • Fixture height: 550 mm
  • Fixture length: 480 mm
  • Fixture width: 320 mm
  • Warranty period: 5 years
