IP65 floodlight JNHM2-1250S-5700-A2-ND
LEDfor stadiumfor airport

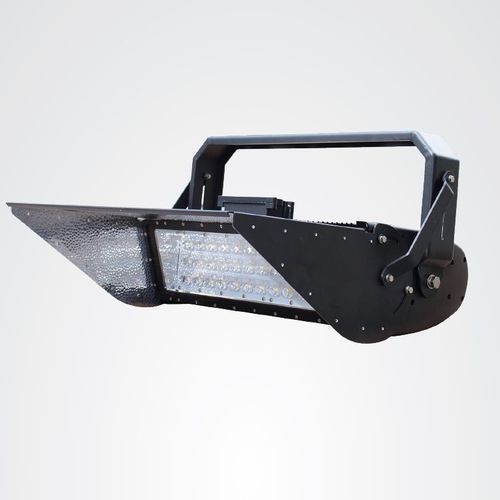

IP65 floodlight - JNHM2-1250S-5700-A2-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A2-ND - JNLED - LED / for stadium / for airport
IP65 floodlight - JNHM2-1250S-5700-A2-ND - JNLED - LED / for stadium / for airport - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, for airport, butcher, for parking lot
Interior/exterior use
outdoor
Type
pole-mounted
Beam type
wash
Dimmable
not dimmable
Other characteristics
IK08, long range, high-intensity
Height

Max.: 550 mm
(22 in)

Min.: 550 mm
(22 in)

Length

Max.: 480 mm
(19 in)

Min.: 480 mm
(19 in)

Width

Max.: 320 mm
(13 in)

Min.: 320 mm
(13 in)

Power

Max.: 1,295 W
(1.76 hp)

Min.: 1,250 W
(1.7 hp)

Luminous flux

Max.: 143,500 lm

Min.: 143,500 lm

Color temperature

Max.: 5,700 K

Min.: 5,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Product overview

  • High-power cool white LED high-mast floodlight designed for outdoor and high-mast installations. Non-dimmable, intended as a direct replacement for metal halide/HID/HPS fixtures with long service life and high luminous output.


Applications

  • Large outdoor areas: stadiums, ports, container yards, airports, highways, industrial yards and shipyards.


Key technical specifications

  • Product SKU: JNHM2-1250S-5700-A2-ND
  • Power Consumption: 1250 W
  • System Power (W): 1295 W
  • Input Voltage / Input Voltage Range: 120-277V AC (standard) / 120-277V AC or 347~488V AC (optional)
  • Beam Angle (°): 90° — Beam Angle Range: 90°x90° (Fixed)
  • Beam Angle Format: Symmetric
  • IP Rating: IP65
  • IK Impact Rating: IK08
  • Color Temperature (K): 5700 K
  • Color Rendering Index (CRI): >70
  • LED Type: Philips Lumileds
  • Number of LED Modules: 8 modules
  • LED Driver Brand: Meanwell HLG-1000H
  • Dimming Capability: Non-dimmable
  • Power Factor: >0.95
  • Surge Protection: 10kV
  • Input Cable: H07RN-F 3G2.5
  • Lens Material: Tempered Glass
  • Total Lumens Output: 143,500 lm
  • Efficacy: 120 lm/W
  • Lifespan (Hours): 80,000 hours
  • Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10% - 95% RH
  • Housing Colour: Marine-Grey
  • Warranty Period (Years): 5


Installation & compliance

  • IP65 and IK08 rated enclosure suitable for outdoor, marine and industrial environments.
  • Surge protection 10kV for improved resilience in industrial installations.
  • Standard input 120-277V AC; optional 347-488V AC. Supplied with H07RN-F 3G2.5 input cable. Tempered glass lens.
  • Operating range: -20°C to 45°C, 10%–95% RH.


Ordering & packaging

  • Fixture dimensions (H×L×W): 550 mm × 480 mm × 320 mm
  • Net Weight: 23 kg
  • Export Carton Dimensions (mm): 900 × 1350 × 487 mm
  • Products per Carton: 2
  • Export Carton Gross Weight (kg): 26 kg
