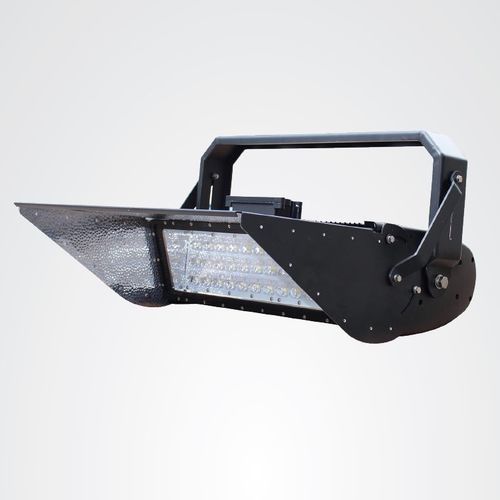

IP65 floodlight JNHM2-1250S-5000-A2-ND

LEDindustrialoutdoor

High-performance 1250 W LED high-mast floodlight designed for demanding outdoor and industrial lighting applications. It integrates Philips Lumileds LEDs and a Meanwell driver; non-dimmable and rated to IP65 and IK08 for reliable outdoor operation.

Features

• Engineered for high-mast floodlighting with a symmetric 90°x90° beam distribution.
• Durable outdoor-rated housing with tempered glass lens for long-term reliability.
• Integrated surge protection and high power factor for stable electrical performance.
• Long rated lifespan to reduce maintenance needs in large installations.

Technical specifications

• Product SKU: JNHM2-1250S-5000-A2-ND
• Power Consumption: 1250 W
• System Power (W): 1295 W
• Input Voltage: 120-277 V AC
• Input Voltage Range (optional): 120-277V AC / 347~488V AC (optional)
• Beam Angle (°): 90°
• Beam Angle Range: 90°x90° (Fixed)
• Beam Angle Format: Symmetric
• IP Rating: IP65
• IK Impact Rating: IK08
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Color Temperature (K): 5000
• Dimming Capability: Non-dimmable
• Housing Colour: Marine-Grey
• Lens Material: Tempered Glass
• LED Driver Brand: Meanwell HLG-1000H
• Number of LED Modules: 8 modules
• Total Lumens Output: 143,500 lm
• Efficacy: 120 lm/W
• Power Factor: >0.95
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G2.5
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Lifespan (Hours): 80,000 hours
• Fixture Height (mm): 550 mm
• Fixture Length (mm): 480 mm
• Fixture Width (mm): 320 mm
• Warranty Period (Years): 5
• Net Weight (kg): 23 kg
• Export Carton Dimensions (mm): 900 x 1350 x 487 mm
• Products per Carton: 2
• Export Carton Gross Weight (kg): 26 kg
