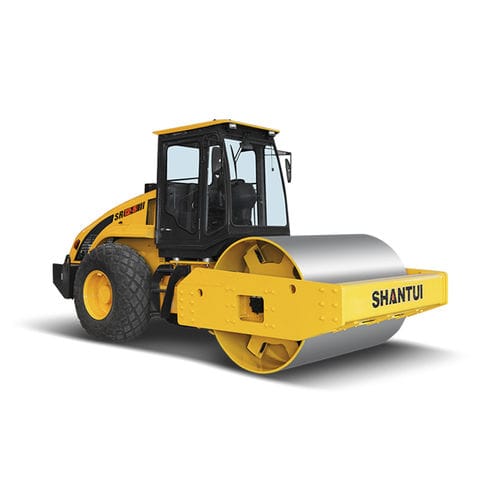

Single-cylinder roller compactor SR SERIES
vibrating

single-cylinder roller compactor
single-cylinder roller compactor
single-cylinder roller compactor
single-cylinder roller compactor
Add to favorites
Compare this product


Characteristics

Type
single-cylinder
Options
vibrating
Operating weight

Min.: 12,000 kg (26,455.5 lb)

Max.: 20,200 kg (44,533.4 lb)

Engine power

105 kW (142.76 hp)

Description

This is a muscular single-drum vibratory roller that primarily employed for road middle-layer compaction. It adopts Fenyi driving axle system, the top hydraulic driving axle provider in China, powered by Weichai Deutz (WP6G140E22) engine. SR12-5, with an option of wearing “sheep’s foot” wheel becoming SR12P-5 attached with 154 padfeet, remains the best-selling product at home and abroad. Technical Features This is a muscular single-drum vibratory roller that primarily employed for road middle-layer compaction. It adopts Fenyi driving axle system, the top hydraulic driving axle provider in China, powered by Weichai Deutz (WP6G140E22) engine. SR12-5, with an option of wearing “sheep’s foot” wheel becoming SR1 Performance Parameters MODEL: SR12-5SR12P-5 WeightsOperating weight12000 kg13150 kg Axle load, drum7000 kg8150 kg Axle load, wheel5000 kg5000 kg Static linear load (at drum)327 N/cm381 N/cm Drum and tiresMaximum working width2110 mm Drum diameter1550 mm1752 mm Drum shell thickness28 mm Number of padfeet—154 Height of the padfoot—95 mm Tire size23.1-26-8PR23.1-26-8PR FrequencyHigh amplitude30 Hz Low amplitude33 Hz High1.9 mm1.48 mm Nominal amplitudeLow1.02 mm0.79 mm Centrifugal forceMaximum270 kN Minimum175 kN
